GR Yaris Small Brake Kit (15'' Wheel compatible)

If you want to take your GR Yaris on the ice during winter you will inevitably want to run the car on proper studs at one point. In order to do this you will need to fit either 15 or 16 inch wheels. With the factory brakes on the car this is an impossible task so we have designed a kit to help out those looking to downsize the wheels on their GR Yaris.

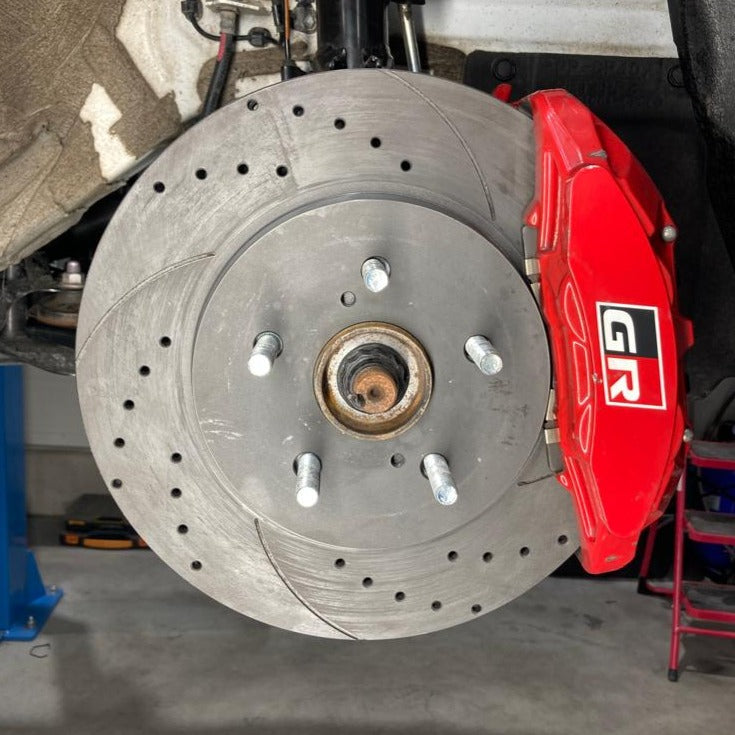

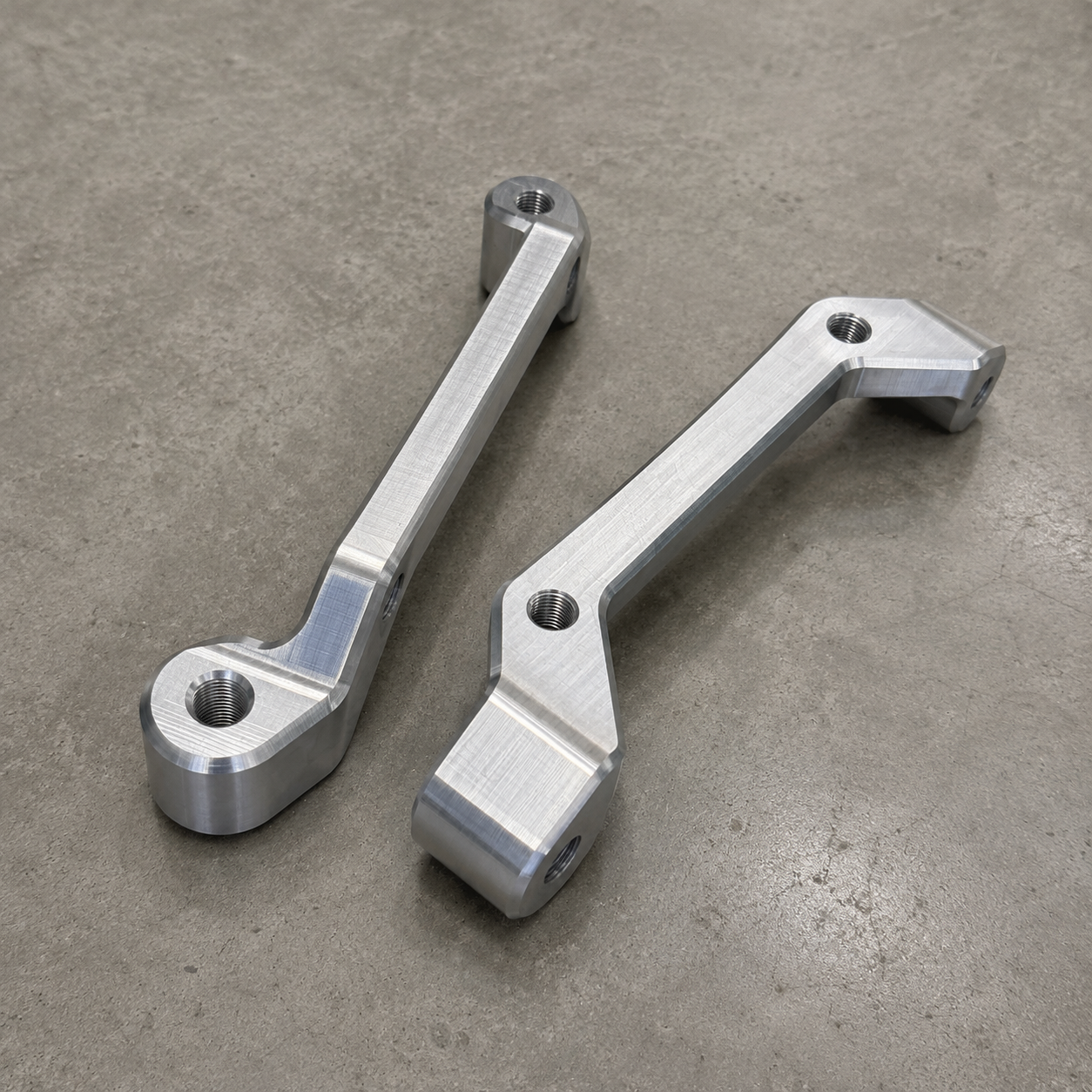

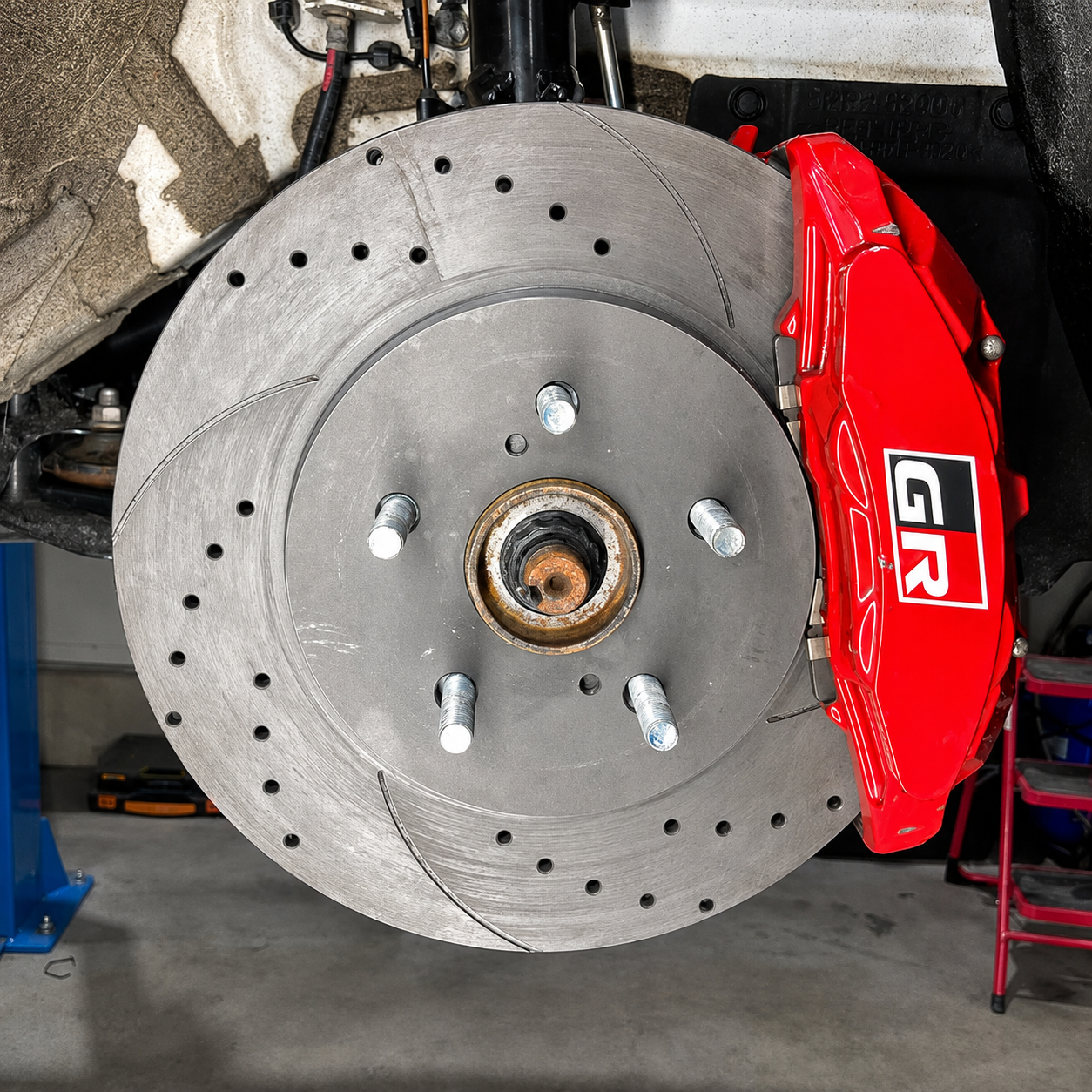

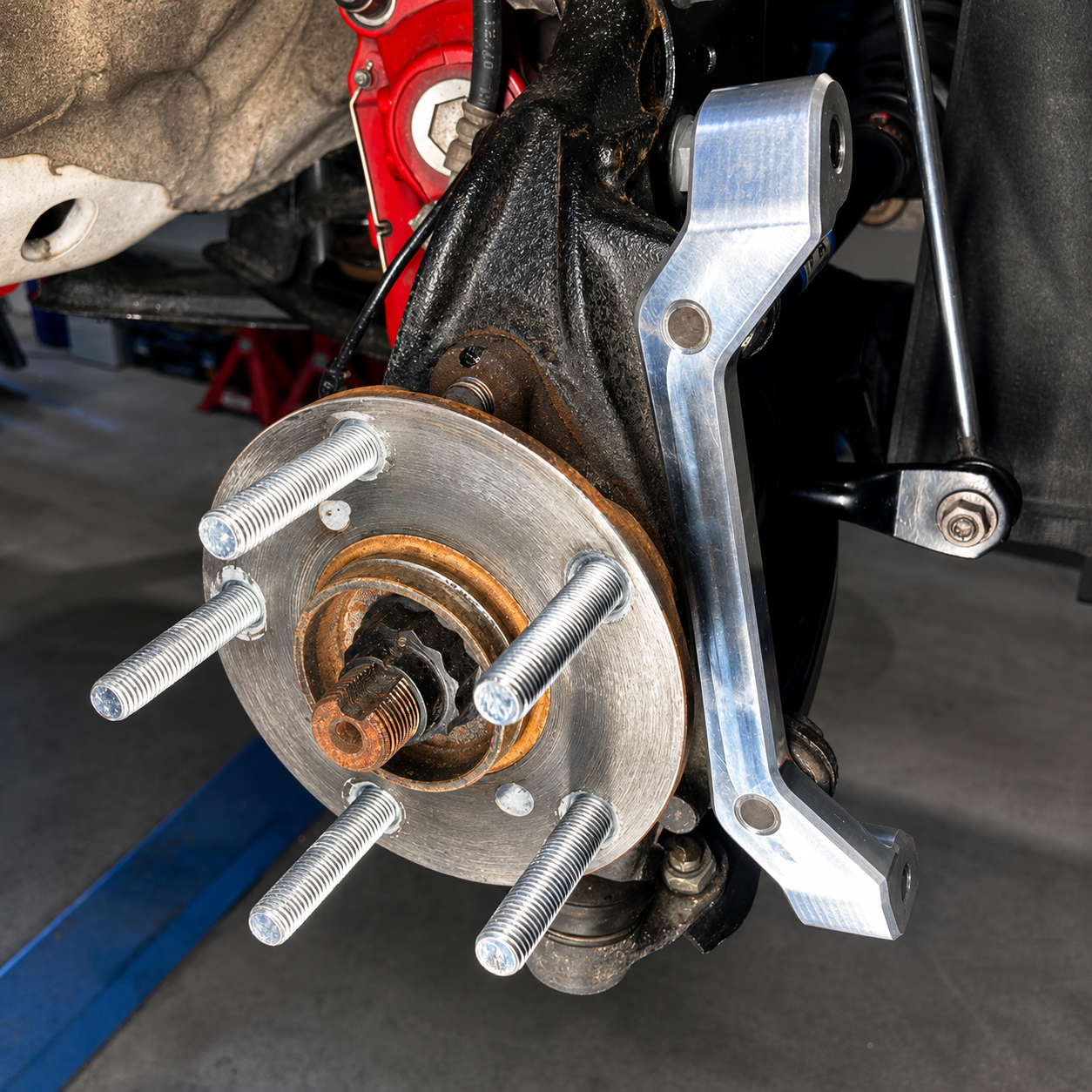

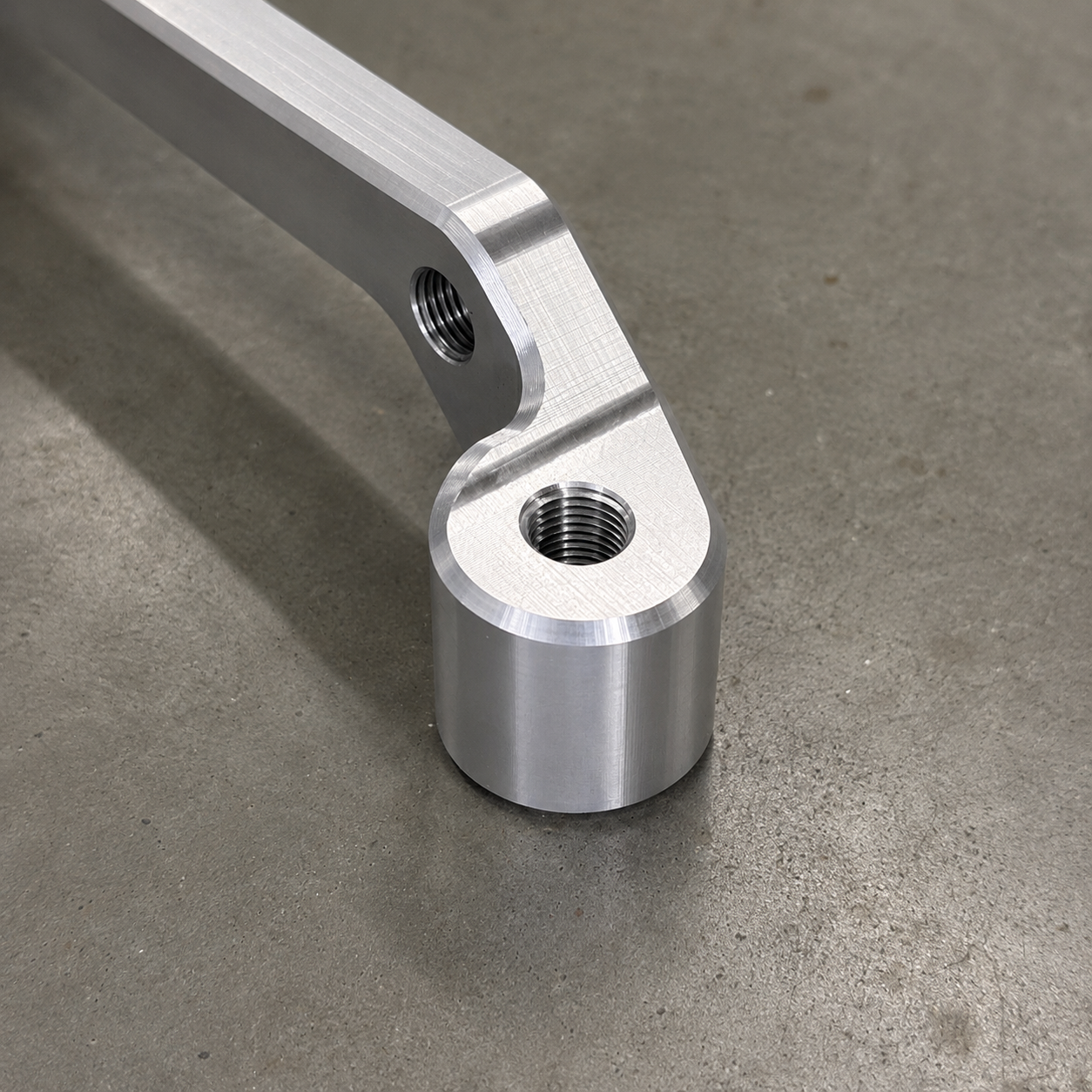

Our kit is one of the simplest solutions to the GR Yaris small wheel problem available on the market! We provide you with a specially machined front brake disc and new caliper bracket. Both fit just like the factory parts, but the disc is 314 mm in diameter instead of the factory 356 mm. The bracket is there to match the brake caliper position to the new disc, it bolts onto the upright just like your factory version. We CNC machine the bracket out of EN6082 aluminium making sure it will withstand any amount of braking force you can throw at it.

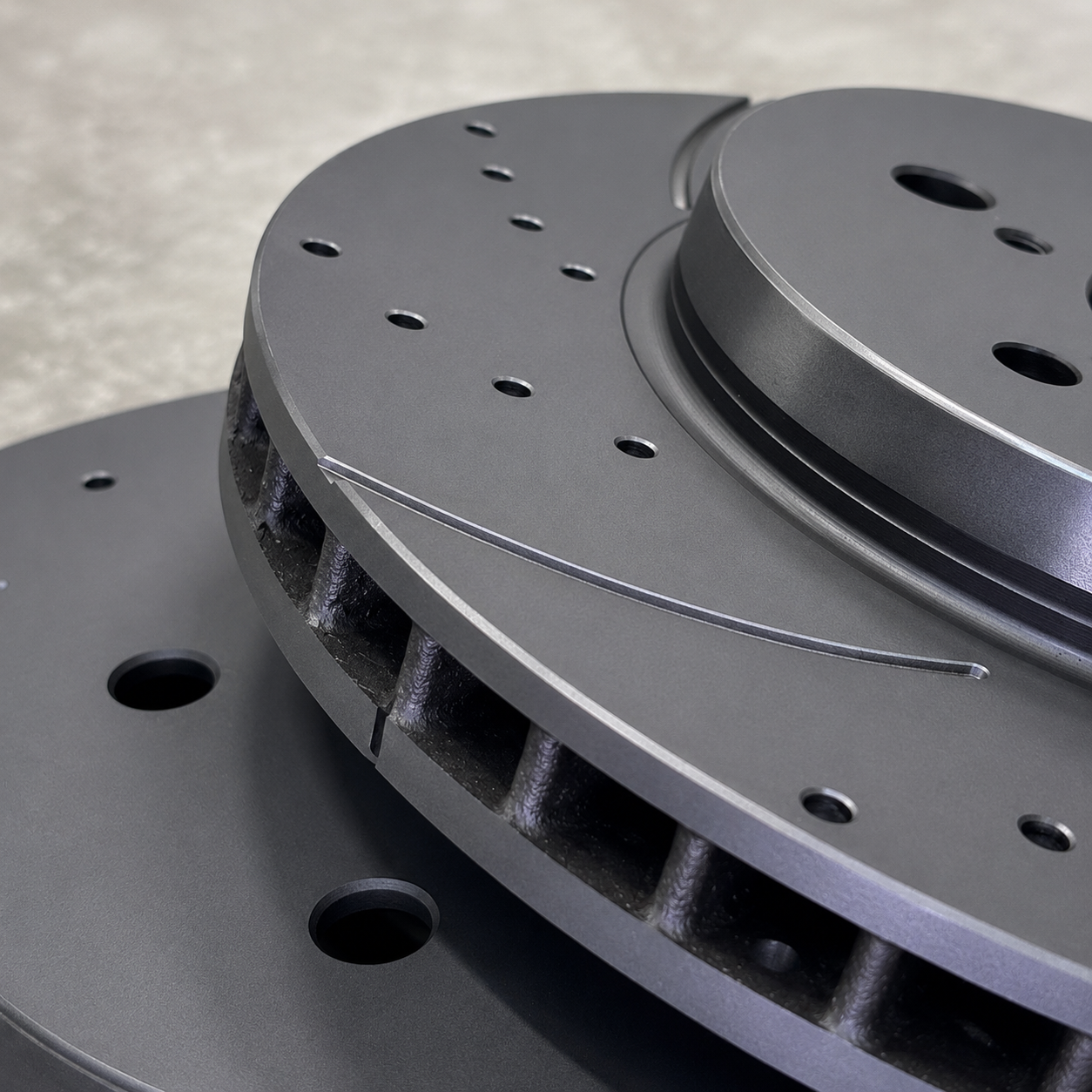

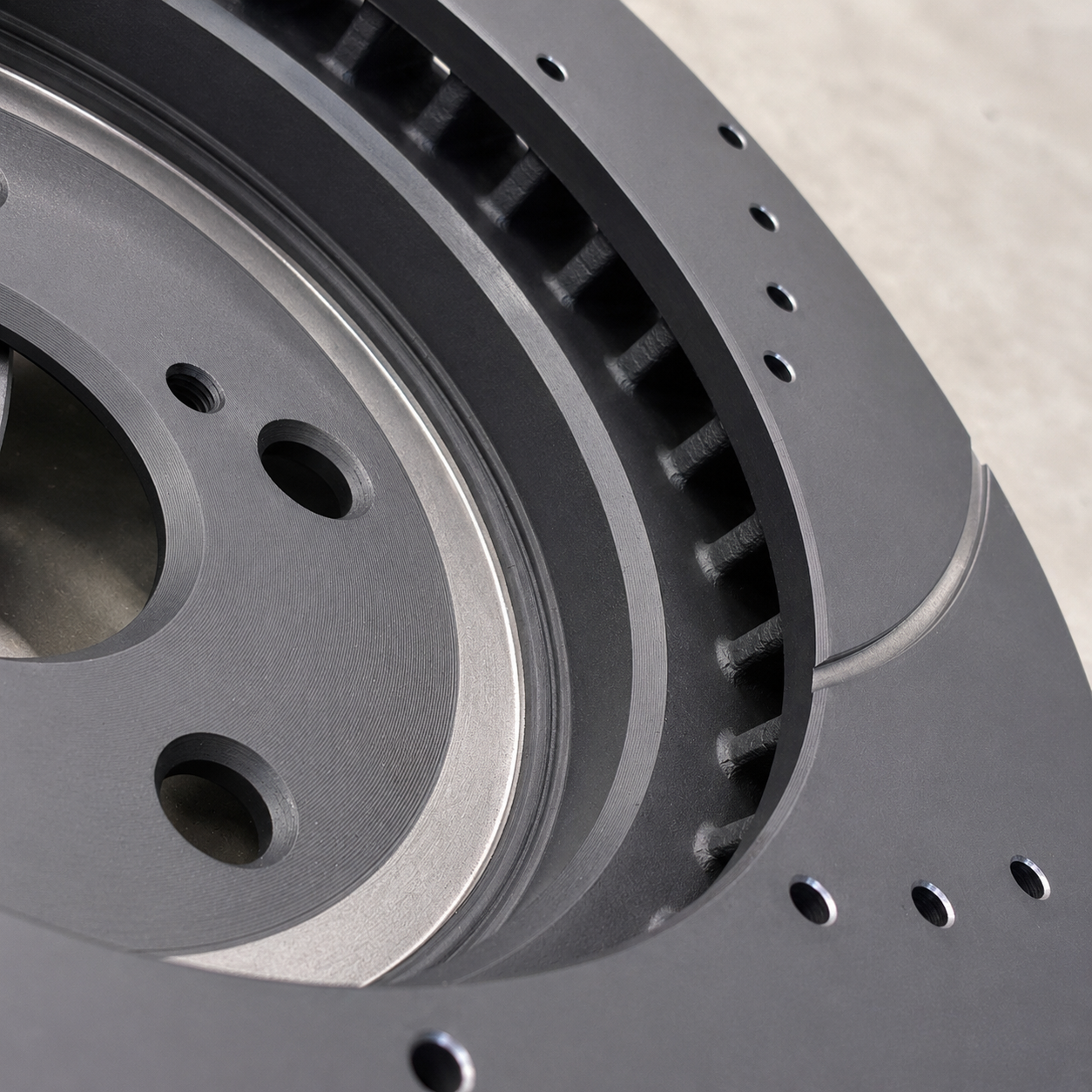

By keeping the factory caliper you are able to use standard GR Yaris brake pads, no need to buy a different pad for smaller brakes. Our discs are not just any old disc either, the blanks we use are Rottinger items with large cooling channels to keep your brakes performing at their best. They also come slotted and drilled for maximum braking performance.

At 314 mm with the factory pad having full contact on the disc you are giving up the bare minimum of braking efficiency on your GR Yaris to make the 15'' wheels fit. A lot of customers are running our kit year round as the difference is not big enough to make changing the brakes worth it for them.

If you do decide you wish to change back to the factory brakes it can easily be done. Just swap round the caliper brackets and discs and you are off!

In order to fit out small brake kit the factory front brake dust shield must be removed. In order to do this the front wheel bearing bolts must be removed as these hold the dust shield in place. You can either cut the dust shield and pull it out from between the wheel bearing and upright or you can also unbolt the driveshaft and pull the dust shield out in one piece. The process is not complicated, but will take some time when doing it for the first time.

The weight of our kit is 18kg.

Tested with EVO Corse and Braid wheels in 15''.

The brake kit is compatible with the 2020-2023 Toyota GR Yaris and also the 2024 facelift.

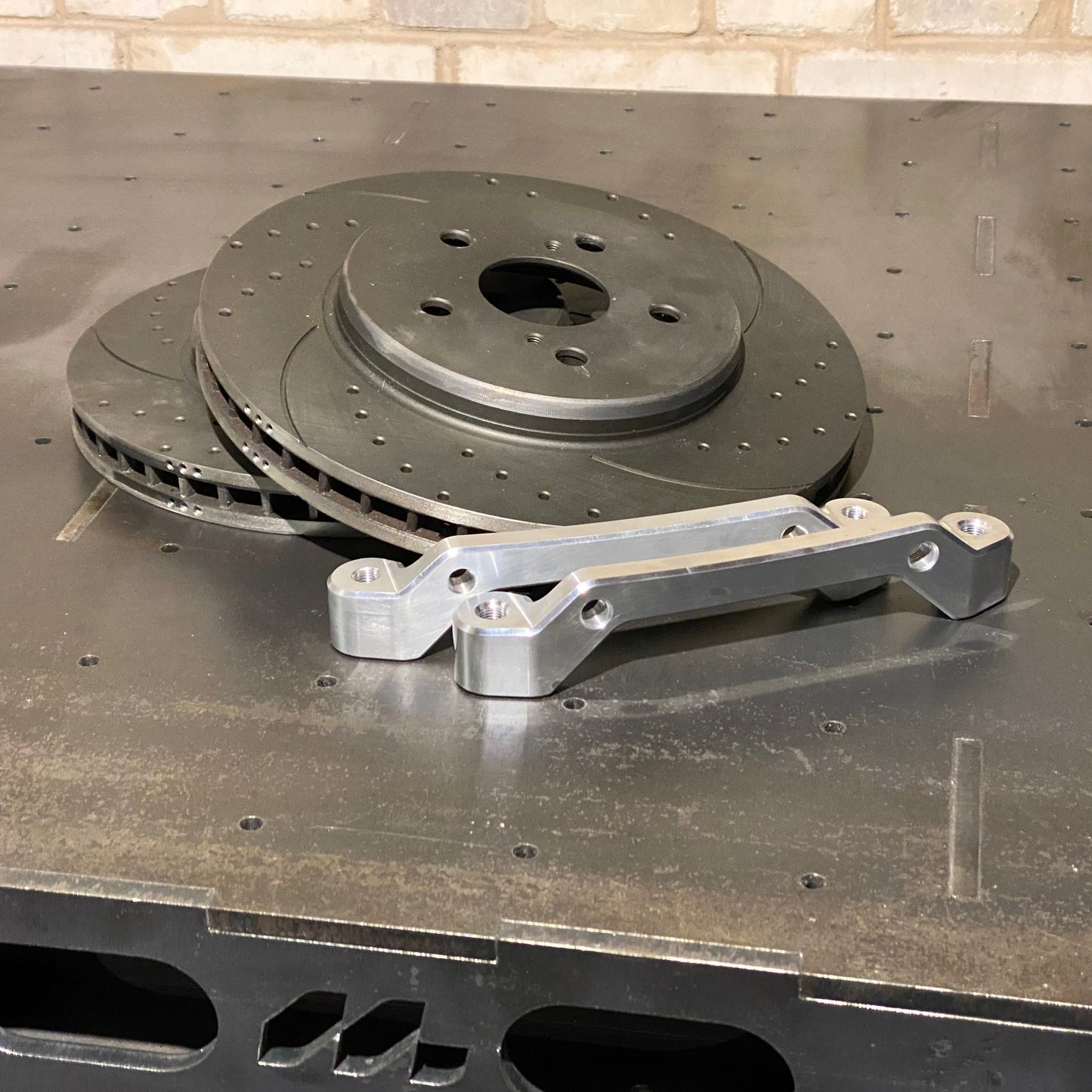

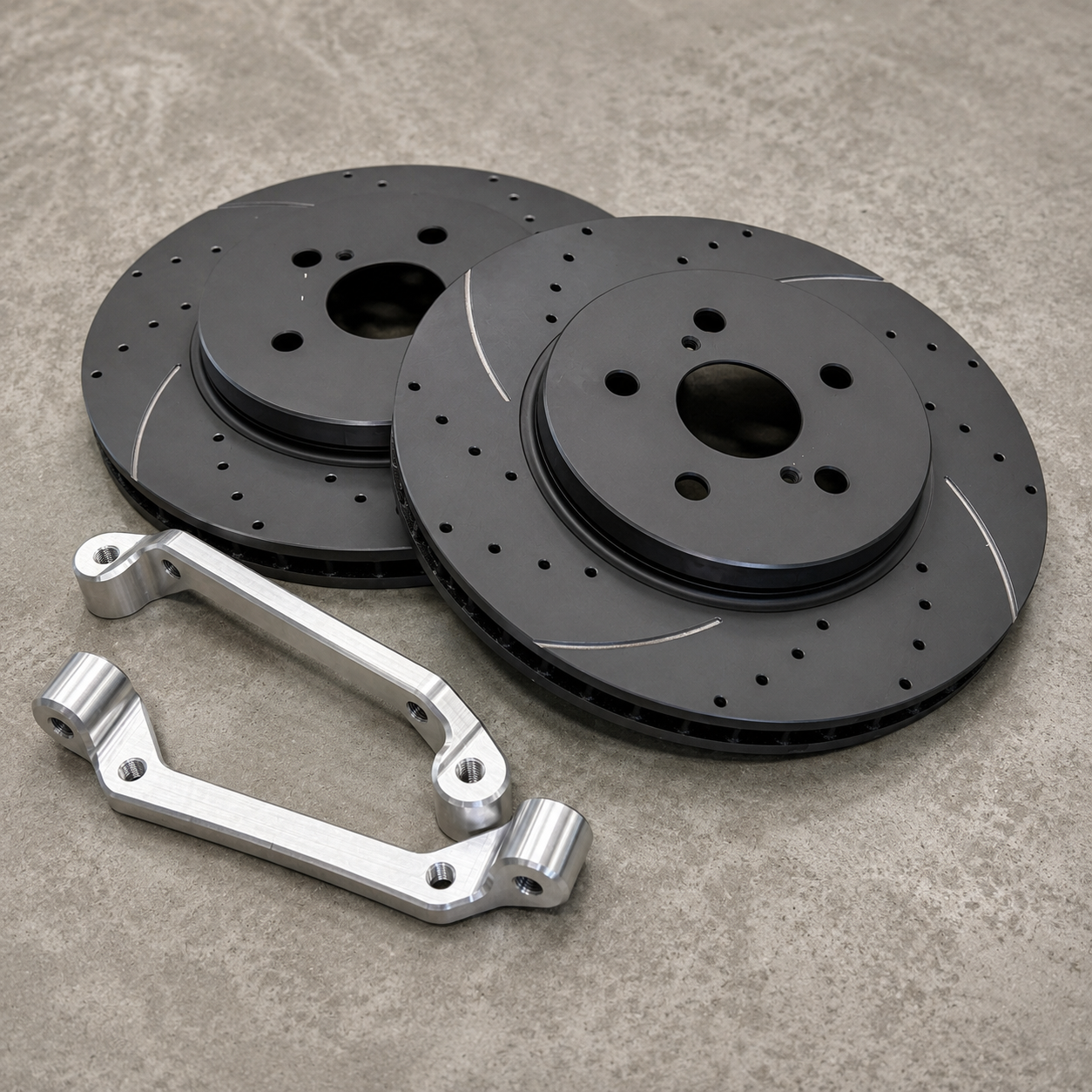

Our GR Yaris small brake kit contains the following:

• Slotted and drilled front brake disc machined to 314 mm X2
• CNC machined Front brake caliper bracket X2

To place an order or request more information feel free to contact us:

info@neomatic.ee

+37253634988 (also whatsapp)

Products are sold with the necessary fasteners
